FDPLL



A programmable fully digital PLL (FDPLL) designed to lock to an incoming clock source and produce an output clock. It is ideal as a clock generator for digital designs, but not intended for analog blocks like ADC / DAC or SERDES clocking. This digital PLL has ultra-low area and low implementation charges due to predictable digital design.



TECHNICAL SPECIFICATION 28nm



Parameter Unit Min Typ Max Comment
Reference frequency MHz 0.8 1000
Output frequency MHz 200 2000
Auxiliary frequency MHz 3.125 1000
Period jitter % < 2 CLKO=1000 МГц
Duty cycle % 45 50 55
Power mW 5 CLKO=1000 МГц
Operational voltage V 0.8 0.9 1.0 Digital only
Total area mm2 0.012
Operational temp C 0 70 85



TECHNICAL SPECIFICATION 16nm



Parameter Unit Min Typ Max Comment
Reference frequency MHz 1.2 3000
Output frequency MHz 300 3000
Auxiliary frequency MHz 1500
Period jitter % <2 CLKO=1000 МГц
Duty cycle % 45 50 55
Power mW 5 CLKO=1000 МГц
Operational voltage V 0.72 0.8 0.99 Digital only
Total area mm2 0.0036
Operational temp C -40 85 125

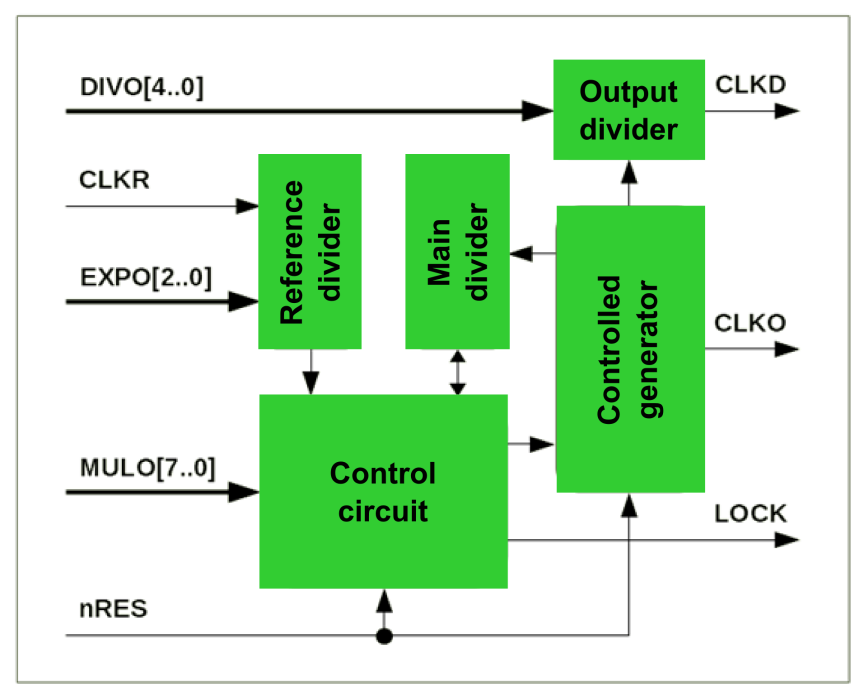

Description



In the capture mode PLL provides periodic signal on CLKO output with period equal to CLKR inputs period multiplied by MULO:EXPO value. Where MULO: EXPO is a denormalized floating-point number, MULO is an 8-bit mantissa, EXPO is a 3-bit exponent. Multiplication coefficient is calculated as follows: the EXPO exponent code [2..0] is interpreted as integer from 0 to 7, which determines the position of the binary point inside the MULO mantissa [7..0]. EXPO numerical value is the number of the MULO digit, followed by a binary dot dividing MULO into integer and fractional parts (the size of the fractional part). For EXPO = 0, the fractional part is absent, and the entire integer part is in MULO [7..0]. For EXPO = 7, the integer part is in MULO [7], fractional in MULO [6..0]. In addition to the main output of the generator, the module has an auxiliary output CLKD, the frequency of which is obtained by dividing the main frequency by a factor of 2*DIVO [4..0].



Table. Pin list

Signal Direction Comment
nRES input Asynchronous Reset (Active Low)
CLKR input Reference frequency
MULO[7..0] input Mantissa of the multiplication coefficient
EXPO[2..0] input The exponent of the multiplication factor
DIVO[4..0] input Post-divider ratio
CLKO output Output frequency
CLKD output Auxiliary frequency after the divider
LOCK output Capture indication (Active High)





FDPLL 28nm Datasheet



FDPLL 16nm Datasheet



FDPLL 28 nm, 16 nm is available on design-reuse.com.
